Refrigerator with freezer Whirlpool ART 9814/A+ SF

Specs Whirlpool ART 9814/A+ SF

Type: Refrigerator with freezer

Key features

Installation method: installation Method — unlike the freely standing

the fridge that You can easily move to any place

the apartment, built-in refrigerator stationary "hiding" in the closet or under

countertop. It has no external case - it is the role of decorative

panel. Due to the decorative panels built-in refrigerator has

additional sound and thermal insulation, there is a possibility the best

way to "fit" the appliance in the kitchen.

embedded

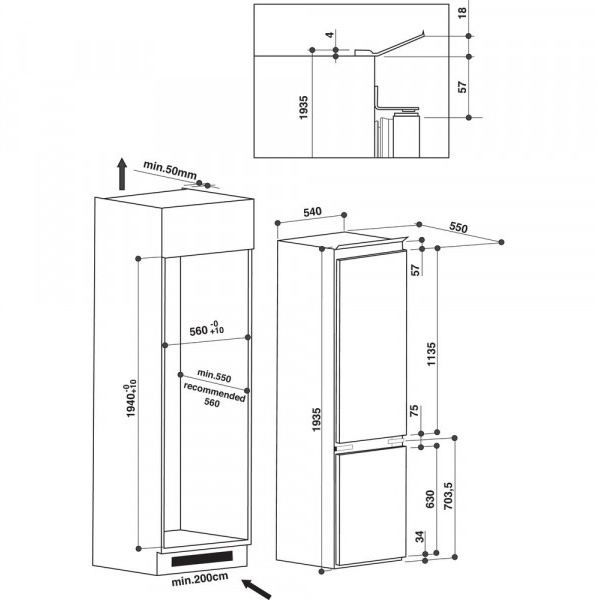

Width, cm:

54

Height, sm:

193,5

Depth, cm:

54,5

Number of doors: Number of doors In most fridges, each of

chambers has a separate door, but there are models in which one door

have two cameras or one camera has two doors. The best

option for refrigerating devices - when each chamber has a separate

the door, in this case it provides insulation and therefore

more precisely the desired temperature and reduced energy consumption.

2

Freezer location: freezer Location Refrigeration the devices with top freezer have small size the freezer where usually there are no separate boxes, and refrigerators with bottom location have a fairly large freezer, in which there are drawers or shelves with hinged doors. Double refrigerated cabinets (side by side) have the freezer which is located along the entire height of the side-by-side with a walk-in refrigerator. Such freezers have much greater size relative to the others. lower

Management: Management — Electromechanical control is usually

a simple turn of the knob of thermostat, which sets the degree of cooling.

Such a mechanism is more reliable, but doesn't go far enough

set the temperature of the refrigerated chambers and to control the work process

refrigerator, in contrast to e-governance.

electronic

Energy class: energy Class — energy efficiency Class

refrigerator denoted by the letter from A+++ to G (respectively: from

super saver up to big wasters of electricity), it is determined in

accordance with the energy performance index, which is calculated for

each appliance according to its consumption and volume. Almost all modern

refrigerators belong to the class not lower than B.

A+

Energy consumption per year in kW:

313

Class freezer Class a freezer Class freezers

determined by its ability to create and maintain a certain temperature

frozen food storage and osoznaetsya stars. The number of asterisks

can be from 1 to 4 and corresponds to the time period during which

the products are stored without any loss of quality

---

Climate class: Climate class — Defines the climatic conditions

operation of the instrument (the temperature and humidity of the external environment), the violation

which can lead to the failure of the refrigerator or low

the efficiency of the work.

SN-T

Freezing capacity, kg/day:

3,5

Standalone cold preservation, h:

19

Noise level, dB:

35

Color:

stainless steel

Weight, kg:

55,2

Volume

The total volume, l:

306 (useful)

The volume of the refrigerating chamber, l: Volume of the refrigerating chamber, l — the Choice of volume

the refrigeration compartment depends on the total number of people in the family, size kitchen and

personal preference. Usually the family of 2-4 people is enough

the fridge with the volume of 250-350 litres.

227

Freezer volume, l freezer Volume, l — If you are stocking up

frozen fruit throughout the winter, then you will need a roomy

freezer. The largest volume are horizontal freezer (gel)

up to 400-600 L. and Vertical types of freezers have a capacity of 80

to 350 HP

79

Method defrosting

Of the refrigerating chamber: automatic (drip)

Freezer:

LessFrost

Compressor

Type of compressor: Type of compressor — unlike conventional refrigerators with

reciprocating compressors, which are periodically switched on and off, then

there are working speed at maximum load, refrigerators with inverter

engine run continuously, maintaining the desired temperature due to the gradual

change compressor capacity. Due to this, the noise from the refrigerator

much lower, much less energy consumption and much

increases the life of the compressor. A linear compressor differs

the absence of the electric motor and the crankshaft, due to the absence of

rotating parts, its design is simpler, it consumes less power

runs quieter and has lower cost. The algorithm of linear

compressors are similar to conventional piston - it periodically turns on

cools the chamber to a predetermined temperature and stops. Linear

inverter compressor combines the advantages of linear and inverter

variants - structurally it does not differ from linear, but does not work

cyclically, but continuously to maintain a certain temperature in

the fridge.

piston

Number of compressors the Number of compressors — Some models

refrigerators have two motor-compressor, working independently

other and having independent control, i.e. we can say that these are two

independent fridge in a single housing. Such models with electronic

management had advantage over the single as long as no

a model with one compressor, but separate cooling circuits.

1

Number of separate cooling circuits: the Number of separately cooled

of paths To increase reliability and reduce costs in

production designers developed and a lot of two door refrigerators

with independent regulation of temperature in different chambers, equipped with one

compressor. Each chamber has a separate temperature controller, which

manages its contour in the cooling system. With separate

regulators can be independently set temperature mode in

freezer and in the refrigerator, or disconnect one of the cameras, the

the refrigerator with independent cooling circuits provides

performance one compressor with a significant reduction in price

manufacture.

2

Structural features

The quantity of fixed shelves of the refrigerating chamber:

4

The number of compartments of the freezer (shared / pull):

3/3

Material of shelves:

glass

Display:

internal

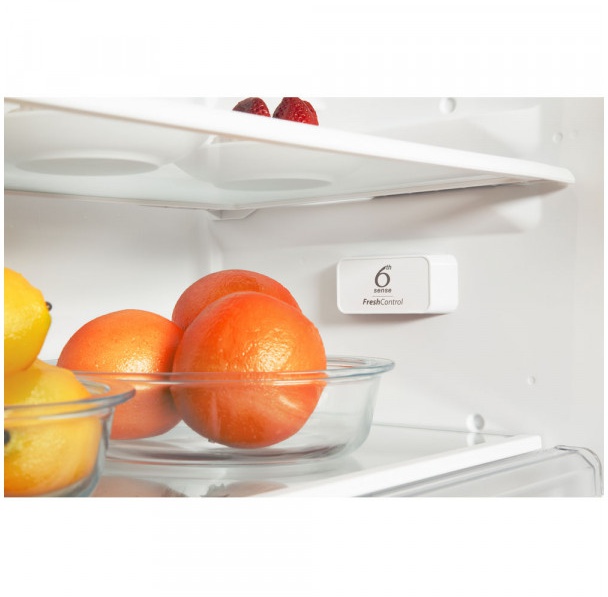

Moisture control:

6TH SENSE Fresh Control

Mount doors to the furniture doors: Mount the doors to the furniture to the façade

The harmonious integration of embedded refrigeration in the kitchen

interior, the outer door of the device, usually behind made in

one design with the other furniture furniture facade. There are two types

fixing refrigerator door furniture facade - Lagernoe and hard.

hard

Main functions

Superklitty: Superolateral Function, which allows you to quickly and

to efficiently cool the products, due to directed flow of air that

cool products from all of the parties, thereby quickly providing

optimal conditions for storage.

FAST COOLING

Additionally: Metal shelf for bottles. Reversible doors
