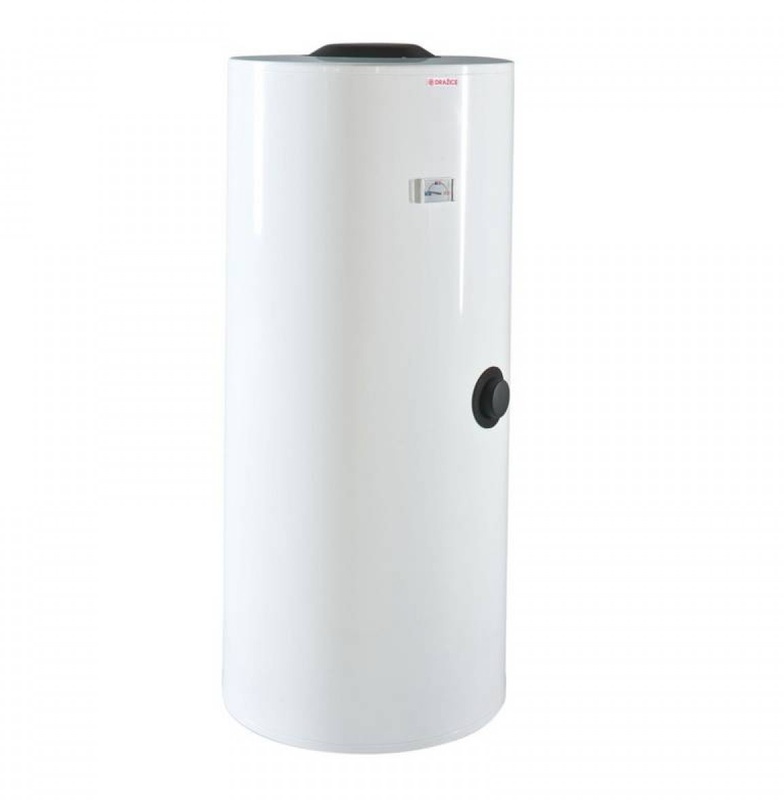

Water heater (boiler) Drazice OKC 250 NTRR/SOL

Specs Drazice OKC 250 NTRR/SOL

Type

indirect heating

Installation

outdoor

Installation

vertical

Capacity, l

245

Form

round

Liquid eyeliner tube

side(left)

Case material

steel

Internal coating tank

enameled steel

Height, mm

1562

Width, mm

584

Depth, mm

584

Color

white

Weight

120

Power, energy efficiency

Power, kW

20/13 (with temperature gradient 60/50°C), 32/24 (with temperature gradient 80/60°C)

The presence of 2 independent heating elements

no

Food In

no

Heating time, h

0,44/0,19 (warm-up time TTB lower/upper exchanger with temperature gradient 60/50°C) 0,28/0,16 (warm-up time TTB lower/upper exchanger with temperature gradient 80/60°C)

Maximum temperature, C

110

Water pressure (min/max), ATM

nd/10 (tank), nd/10 (heat exchanger)

Water consumption, l/min

no data

Gas consumption, m3/hour

no

The chimney, mm

no

Equipment

Management

mechanical

Indicators

indicator light

Magnesium anode

Yes

The quick heat function

no

Safety switches (RCD)

no

The possibility of indirect heating

Yes

Additionally

Boiler Drazice OKC 250 NTRR/SOL runs on solar energy. The heater has a cylindrical shape. A part of the mechanism includes two heat exchanger with total capacity is 48 kW.
