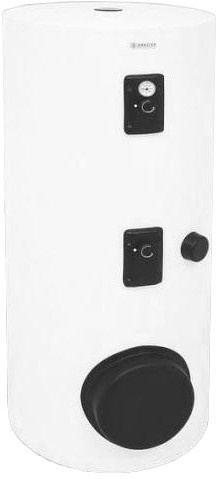

Water heater (boiler) Drazice OKC 250 NTR/BP

Specs Drazice OKC 250 NTR/BP

Type:

indirect heating

Mounting type:

outdoor

Method of installation:

vertical

Capacity, l:

250

Form:

round

Lip gloss tubes:

side (right)

Housing material:

steel

The inner coating of the tank:

enameled steel

Height, sm:

150,8

Width, cm:

58,4

Depth, cm:

58,4

Color:

white

Weight, kg:

111

Power, energy efficiency

Power, kW:

32

The presence of 2 independent heating elements:

no

Diet:

230

Heating time, h:

no data

Maximum temperature, C:

80(technical water)/110(heating)

Water pressure (min/max), ATM:

6-10(work)

Water consumption, l/min:

no data

Gas consumption, m3/hour:

no

The chimney, mm:

no

Equipment

Management:

mechanical

Indicators:

thermometer dial

Magnesium anode:

Yes

The quick heat function:

no

Safety switches (RCD):

no

The possibility of indirect heating:

Yes

Additionally:

Execution of BP (lateral flange) the heater is equipped with a temperature controller TLG (a thermostat to control the three-way valve or circulation pump), the main function, year-round operation in conjunction with a gas boiler with priority connection TLG heating, magnesium anode, temperature display
