  • Italtherm City Max 24 F
  • Italtherm City Max 24 F
Italtherm City Max 24 F
Share:

Gas boiler standard Italtherm City Max 24 F

Product code: 136149
Not available
Add review
Warranty:
  • 120 months (from official service center)
  • 14 days for exchange / refund
Delivery:

Specify the prices for delivery and terms at the order, the prices can change.
Payment:
  • Безнал без НДС
  • Безнал с НДС

Specs Italtherm City Max 24 F

Type:
Boiler gas standard

The number of circuits (designation): circuits (heating+hot water)

Installation method:
hinged
The diameter of the chimney (chimney/duct), mm:
60/100
Form of traction:
forced air supplied from the outside of the room
Type combustion chamber:
closed (turbo)
The combustion chamber volume, l:
no
Power, kW:
23,8
Efficiency, %:
92,8
Maximum fuel consumption:
2,72 m3/h.
Fuel:
natural gas
Coolant:
water
The need for connection to the mains:
Yes

Heating

The material of the main heat exchanger:
no data
Min./Max. the pressure in the heating circuit, bar:
0,5/3
Adjustable temperature range in the heating circuit, grad.C:
35-78
Heating area, sq. m:
up to 240
Expansion tank:
Yes (10l)

Hot water

Boiler, l:
60L (external)
The material of the secondary heat exchanger:
stainless steel
Min./Max. water supply pressure, bar:
3,5/8
System performance domestic hot water, l/min:
15
Adjustable temperature range in the tank, deg.C:
30-60

Equipment and functionality

Type of ignition:
automatic ignition
Management:
electronic control unit (nevinnoi/remote option)
Fan air flow:
no
Circulation pump:
Yes
Automatic fuel supply:
no
Mode "Summer":
no data
Freeze protection:
Yes
Protection against the violation of the circulation of the coolant:
Yes
Diet :
220
Noise level, dB:
no data
Size in mm (WxHxD):
600x900x425
Weight, kg:
60
Additionally:
Electric ignition and electronic flame modulation, independent temperature controls hot water and heating using the modulation system of autodiagnosis with analogue led display, function of antibacterial protection of the boiler, the system against freezing the boiler anti-freeze, the system for lifting the thermal inertia of the heat exchanger system, which prevents overheating of the heat exchanger of the boiler, the velocity selector of the circulation pump, a system that prevents jamming of the circulation pump, the ability to connect a room thermostat. ... show more show less

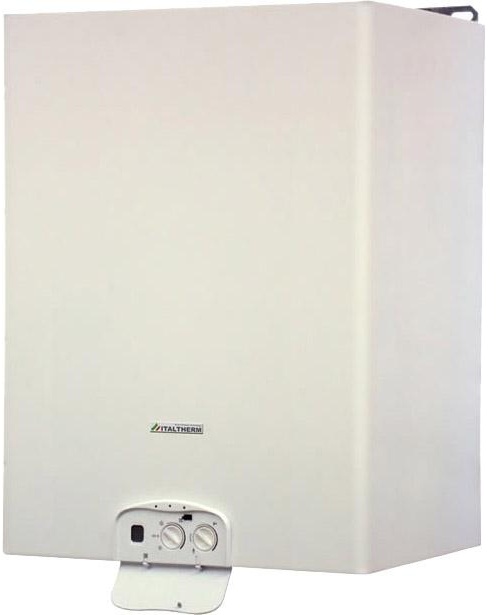

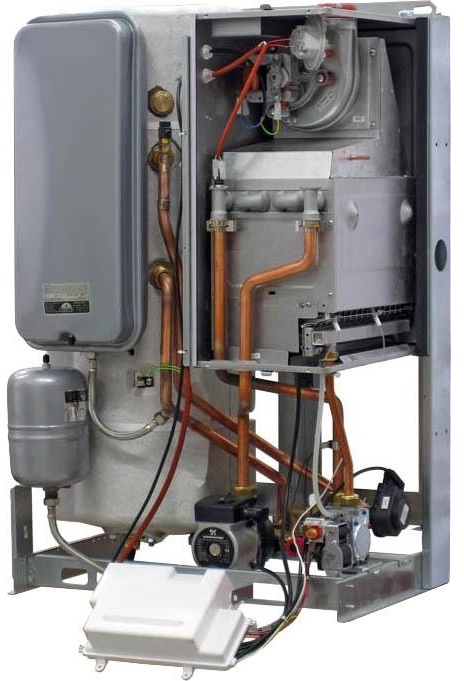

Pictures of Italtherm City Max 24 F

  • Italtherm City Max 24 F
  • Italtherm City Max 24 F
