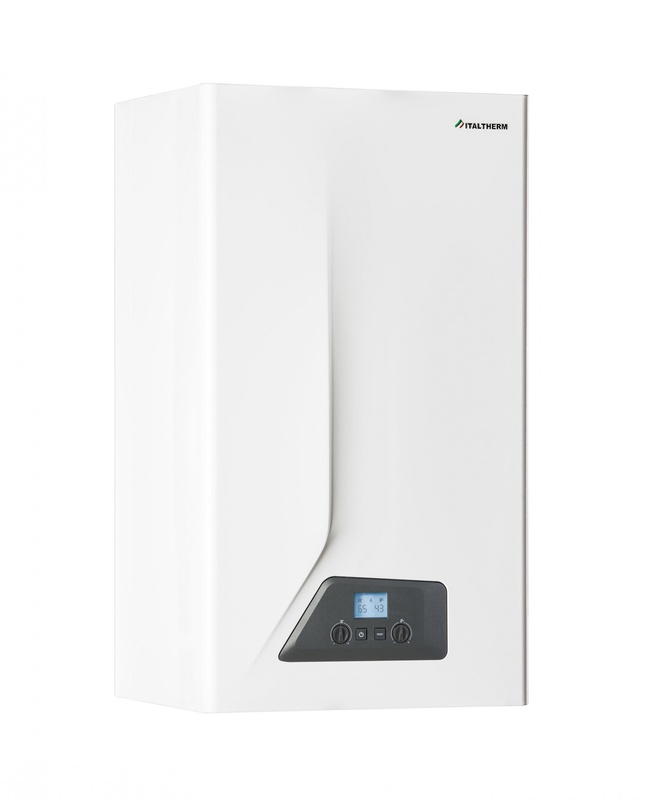

Gas boiler standard Italtherm City Class 35 F

Specs Italtherm City Class 35 F

Type:

Boiler gas standard

The number of circuits (designation): circuits (heating+hot water)

Installation method:

hinged

The diameter of the chimney (chimney/duct), mm:

60/100

Form of traction:

forced

Type combustion chamber:

closed (turbo)

Power, kW:

32,4

Efficiency, %:

94

Maximum fuel consumption:

3,65 m3/h

Fuel:

natural gas

Coolant:

water

The need for connection to the mains:

Yes

Heating

The material of the main heat exchanger:

copper

Min./Max. the pressure in the heating circuit, bar:

no data

Adjustable temperature range in the heating circuit, grad.C:

35-80

Heating area, sq. m:

up to 350

Expansion tank:

Yes (8L)

Hot water

Boiler, l:

no

The material of the secondary heat exchanger:

stainless steel

System performance domestic hot water, l/min:

15,5 (at t=30 °C)

Adjustable temperature range in the tank, deg.C:

30-60

Equipment and functionality

Type of ignition:

automatic

Management:

electronic control unit

Circulation pump:

Yes

Automatic fuel supply:

no

Surface for cooking:

no

Mode "Summer":

Yes

Wi-Fi:

no

Freeze protection:

Yes

Protection against the violation of the circulation of the coolant:

Yes

Diet :

230

Noise level, dB:

no data

Size in mm (WxHxD):

400х700х300

Weight, kg:

34,8

Additionally:

New design of the boiler, designed by Italian company GIUGIARO, izvestnoi their designs for Ferrari,Maserati,Corvette.High-quality components with high performance characteristics for long and trouble-free operation of the equipment. The possibility to connect the room chronothermostat, remote control.
