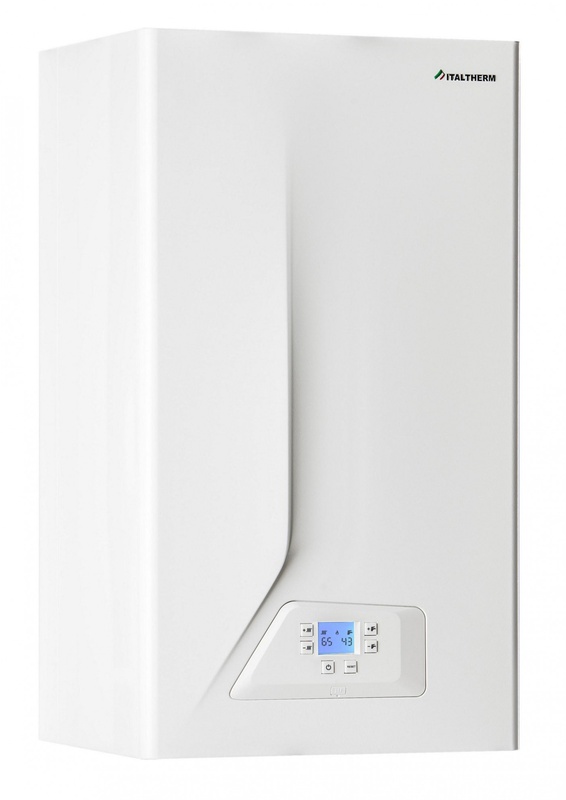

Boiler gas condensing Italtherm City Class 25 KR

Specs Italtherm City Class 25 KR

Type:

Boiler gas condensing

The number of circuits (designation):

single-circuit (only heating)

Installation method:

hinged

The diameter of the chimney (chimney/duct), mm:

60/100

Form of traction:

forced

Type combustion chamber:

closed (turbo)

Power, kW:

25

Efficiency, %:

106,4

Maximum fuel consumption:

2,64 m3/h

Fuel:

natural gas

Coolant:

water

The need for connection to the mains:

Yes

Heating

The material of the main heat exchanger:

stainless steel

Min./Max. the pressure in the heating circuit, bar:

no data

Adjustable temperature range in the heating circuit, grad.C:

35-80

Heating area, sq. m:

up to 250

Expansion tank:

Yes (8L)

Hot water

Boiler, l:

no

The material of the secondary heat exchanger:

no

Equipment and functionality

Type of ignition:

automatic

Management:

electronic control unit

Circulation pump:

Yes

Automatic fuel supply:

no

Surface for cooking:

no

Mode "Summer":

no

Wi-Fi:

no

Freeze protection:

Yes

Protection against the violation of the circulation of the coolant:

Yes

Diet :

230

Noise level, dB:

no data

Size in mm (WxHxD):

400х700х300

Weight, kg:

27,5

Additionally:

New design of the boiler, designed by Italian company GIUGIARO, izvestnoi their designs for Ferrari,Maserati,Corvette.High-quality components with high performance characteristics for long and trouble-free operation of the equipment. A feature of this boiler is the use of high performance condensing module with increased razmerami pass channels. Built-in three way valve for connection of the boiler . The ability to connect a room thermostat, remote control , temperature sensor. ... show more show less
