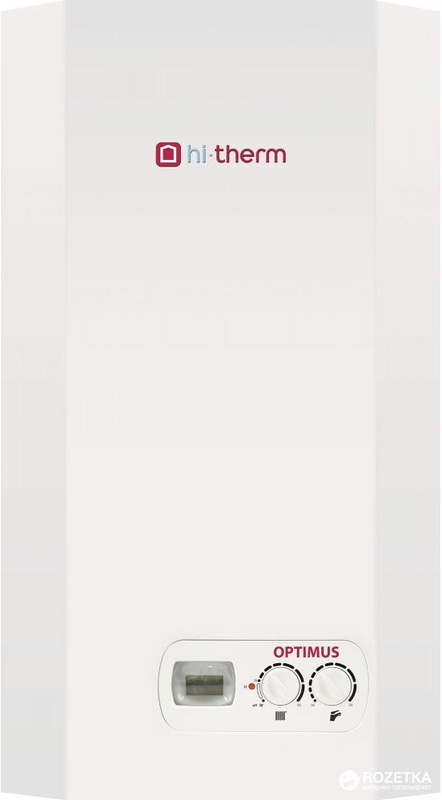

Gas boiler standard Hi-Therm Optimus 12

Specs Hi-Therm Optimus 12

Type:

Boiler gas standard

The number of circuits (designation): circuits (heating+hot water)

Installation method:

hinged

The diameter of the chimney (chimney/duct), mm:

60/100

Form of traction:

forced

Type combustion chamber:

closed (turbo)

The combustion chamber volume, l:

no

Power, kW:

12

Efficiency, %:

93

Maximum fuel consumption:

no data

Fuel:

natural gas/liquefied gas

Heating time, hours:

no data

Coolant:

water

The need for connection to the mains:

Yes

Heating

The material of the main heat exchanger:

copper

Min./Max. the pressure in the heating circuit, bar:

no data

Adjustable temperature range in the heating circuit, grad.C:

38 - 85

Heating area, sq. m:

up to 120

Expansion tank:

no data

Hot water

Boiler, l:

no

The material of the secondary heat exchanger:

stainless steel

Min./Max. water supply pressure, bar:

no data

System performance domestic hot water, l/min:

10,2

Adjustable temperature range in the tank, deg.C:

30 - 60

Equipment and functionality

Type of ignition:

automatic

Management:

mechanical

Fan air flow:

no

Circulation pump:

Yes

Automatic fuel supply:

no

Surface for cooking:

no

Mode "Summer":

no

Wi-Fi:

no

Freeze protection:

Yes

Protection against the violation of the circulation of the coolant:

Yes

Diet :

220

Noise level, dB:

no data

Size in mm (WxHxD):

no data

Weight, kg:

34
