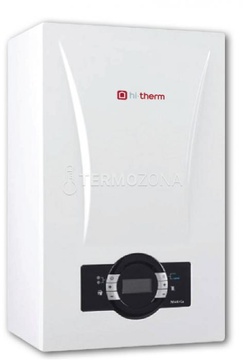

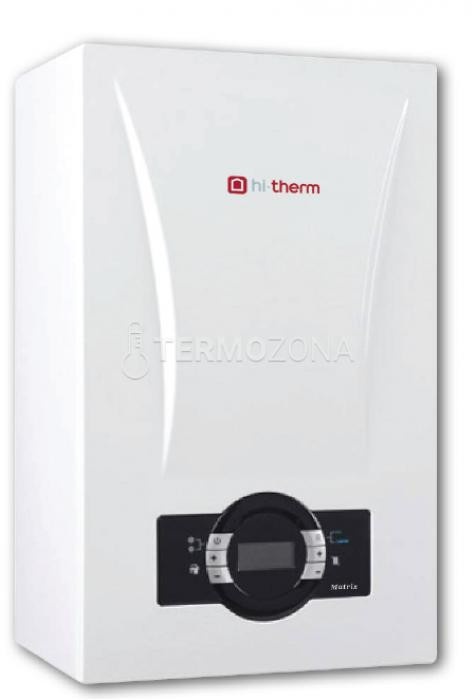

Gas boiler standard Hi-Therm Matrix 30

Specs Hi-Therm Matrix 30

Type:

Boiler gas standard

The number of circuits (designation): circuits (heating+hot water)

Installation method:

hinged

The diameter of the chimney (chimney/duct), mm:

80/125

Form of traction:

with forced air supply (pipe in pipe)

Type combustion chamber:

closed (turbo)

The combustion chamber volume, l:

no data

Power, kW:

30

Maximum fuel consumption:

3,25 m3/h

Fuel:

natural/liquefied gas

Heating time, hours:

no data

Coolant:

water

The need for connection to the mains:

Yes

Heating

The material of the main heat exchanger:

copper

Min./Max. the pressure in the heating circuit, bar:

no data/3

Adjustable temperature range in the heating circuit, grad.C:

40-85

Heating area, sq. m:

up to 300 m2

Expansion tank:

Yes (8L)

Hot water:

no

Hot water

Boiler, l:

no

The material of the secondary heat exchanger:

stainless steel

Min./Max. water supply pressure, bar:

0,3/10

System performance domestic hot water, l/min:

no data

Adjustable temperature range in the tank, deg.C:

no data

Equipment and functionality

Type of ignition:

automatic ignition

Management:

electronic control unit (nevinnoi)

Fan air flow:

no

Circulation pump:

Yes

Automatic fuel supply:

no

Surface for cooking:

no

Mode "Summer":

no data

Wi-Fi:

no

Freeze protection:

Yes

Protection against the violation of the circulation of the coolant:

Yes

Diet :

220

Noise level, dB:

no data

Size in mm (WxHxD):

678х410х288

Weight, kg:

32

Additionally:

three-speed circulation pump of the heating circuit with integrated deaerator
