Set AHD video surveillance CoVi Security HVK-4005 AHD PRO KIT

Specs CoVi Security HVK-4005 AHD PRO KIT

Type:

Complete AHD CCTV

Camera

Model:

AHD-101W-40V - 4 PCs; AHD-100D-20 - 4 PCs.

Type of camera: street 4 piece; dome-4 pieces

The number of cameras, PCs:

8

The possibility of using on the street:

Yes

Resolution:

960p (1280x960)

Matrix:

1/3" SONY

Focal length:

Varifocal 2,8-12 mm

Viewing angles horizontal/vertical:

27° / 82°

Sensor type/CPU Type:

SONY

White balance:

auto

Infrared light:

up to 30m

Housing material:

metal, gray

Microphone/Speaker:

no

Operating temperature, °C / Humidity:

-20 to +50

Size in mm:

no

DVR

Model:

AHD-4000HD Lite

Management: Linux

Video inputs:

8xBNC

Video outputs:

1xBNC, 1xVGA, 1xHDMI

Audio inputs:

8xRCA

Audio outputs:

1xRCA, 1xHDMI

The number of recording channels D1 real-time:

8

Supported drives:

HDD is (the DVR is not equipped with jetskis drive).

Alarm inputs:

no

Relay outputs:

no

USB 2.0:

2

Network interface:

RJ-45 (10/100M)

PTZ control:

RS485

Remote access from mobile devices:

no

Support CMS:

Yes

Cooler:

no

Operating temperature, °C / Humidity: range : -10 to +50 / 10-90%

Size in mm:

no

Optionally

The functionality of the security system:

motion detection, the loss or absence of the video signal, close the camera

Recording modes:

manual, schedule, continuous, detection, stop

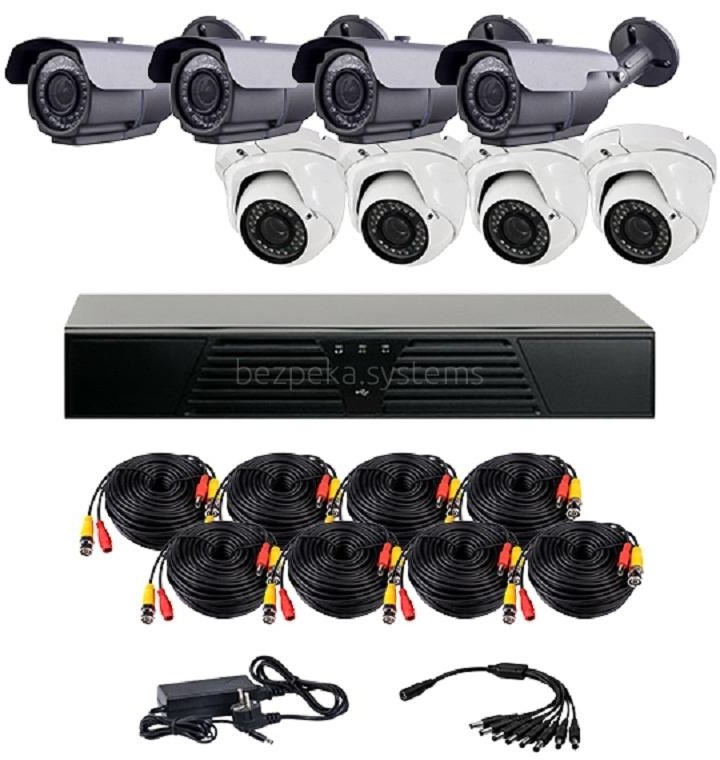

Package contents:

DVR AHD-4000HD Lite - 1pc.; camcorder AHD-101W-40V - 4pcs.; camcorder AHD-100D-20 - 4pcs.; power splitter DC 1 to 8 - 1 PC.; cable VC-15 - 8pcs.; USB mouse - 1 PC.; power supply 220V/12V - 1pc.; manual.
