Set AHD video surveillance CoVi Security HVK-2006 AHD PRO KIT

Specs CoVi Security HVK-2006 AHD PRO KIT

Type:

Complete AHD CCTV

Camera

Model:

AHD-100D-20 - 2 PCs.

Type of camera:

interior dome

The number of cameras, PCs:

2

The possibility of using on the street:

no

Resolution:

1260х960

Matrix:

1/3" SONY

Focal length:

3.6 mm

Viewing angles horizontal/vertical:

67° / 53°

Sensor type/CPU Type:

SONY

White balance:

auto

Infrared light:

up to 20m

Housing material:

metal, white

Microphone/Speaker:

no

Operating temperature, °C / Humidity:

-20 to +50

Size in mm:

no

DVR

Model:

ADR-3301HD Lite

Management: Linux

Video inputs:

4xBNC

Video outputs:

1xBNC, 1xVGA, 1xHDMI

Audio inputs:

4xRCA

Audio outputs:

1xRCA, 1xHDMI

Standards video recording:

1280x720 720p, 960H 960х576

The number of recording channels D1 real-time:

4

Supported drives:

HDD (DVR not included jetski drive)

Alarm inputs:

no

Relay outputs:

no

USB 2.0:

2 (for mouse control/backup)

Network interface:

RJ-45 (10/100M)

PTZ control:

RS485

Remote access from mobile devices:

no

Support CMS:

Yes

Cooler:

no

Operating temperature, °C / Humidity: range : -10 to +50 / 10-90%

Size in mm:

no

Optionally

The functionality of the security system:

motion detection, the loss or absence of the video signal, close the camera

Recording modes:

manual, schedule, continuous, detection, stop

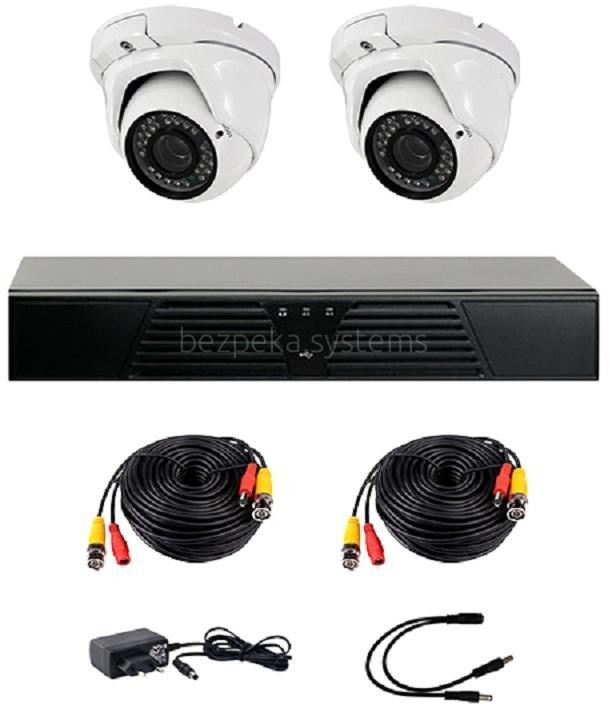

Package contents:

DVR AHD-3301HD Lite - 1; camcorder AHD-100D-20 - 2pcs; power splitter DC 1-2 - 1; cable VC-15 - 2pcs; USB mouse 1pcs; power supply 220V/12V - 1pc; instruction.
