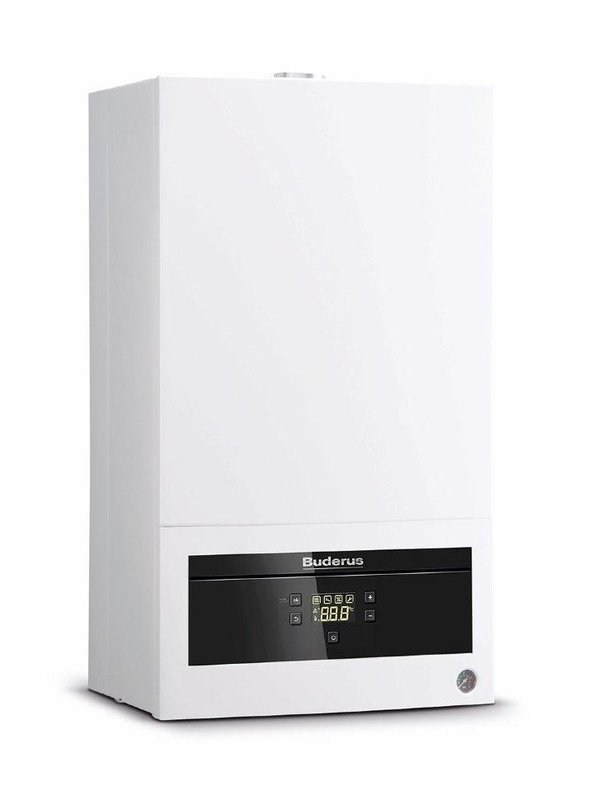

Gas boiler standard Buderus Logamax U072-24

Specs Buderus Logamax U072-24

Type:

Boiler gas standard

The number of circuits (designation):

single-circuit (only heating)

Installation method:

hinged

The diameter of the chimney (chimney/duct), mm:

60/100

Form of traction:

with forced air supply (pipe in pipe)

Type combustion chamber:

closed (turbo)

The combustion chamber volume, l:

no

Power, kW:

24

Efficiency, %:

no data

Maximum fuel consumption:

2.8 m3/h.

Fuel:

natural gas/liquefied gas

Heating time, hours:

no

Coolant:

water

The need for connection to the mains:

Yes

Heating

The material of the main heat exchanger:

steel

Min./Max. the pressure in the heating circuit, bar:

0,3/10

Adjustable temperature range in the heating circuit, grad.C:

40-82

Heating area, sq. m:

240

Expansion tank:

+ (8 l)

Hot water

Boiler, l:

no

The material of the secondary heat exchanger:

no

Min./Max. water supply pressure, bar:

no

System performance domestic hot water, l/min:

no

Adjustable temperature range in the tank, deg.C:

no

Equipment and functionality

Type of ignition:

automatic ignition

Management:

electronic control unit (nevinnoi)

Circulation pump:

Yes

Automatic fuel supply:

no

Surface for cooking:

no

Mode "Summer":

no

Freeze protection:

Yes

Protection against the violation of the circulation of the coolant:

Yes

Diet :

230

Noise level, dB:

38

Size in mm (WxHxD):

400х700х300

Weight, kg:

36
