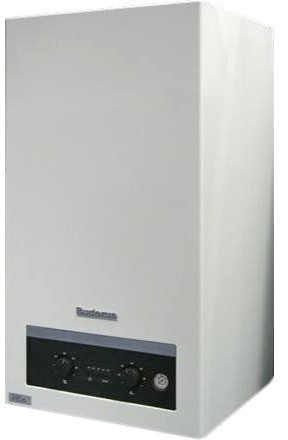

Gas boiler standard Buderus Logamax U044-24K

Specs Buderus Logamax U044-24K

Type:

Boiler gas standard

The number of circuits (designation): circuits (heating+hot water)

Installation method:

hinged

The diameter of the chimney (chimney/duct), mm:

130

Form of traction:

natural

Type combustion chamber:

open (atmo)

The combustion chamber volume, l:

no

Power, kW:

24

Efficiency, %:

90-92

Maximum fuel consumption:

2,72 m3/h.

Fuel:

natural/liquefied gas

Heating time, hours:

no data

Coolant:

water

The need for connection to the mains:

Yes

Heating

The material of the main heat exchanger:

copper

Min./Max. the pressure in the heating circuit, bar:

0,5/3

Adjustable temperature range in the heating circuit, grad.C:

40-82

Heating area, sq. m:

240

Expansion tank:

Yes (8L)

Hot water

Boiler, l:

no data

The material of the secondary heat exchanger:

no data

Min./Max. water supply pressure, bar:

0,25/10

System performance domestic hot water, l/min:

10

Adjustable temperature range in the tank, deg.C:

40-60

Equipment and functionality

Type of ignition:

automatic ignition

Management:

electronic control unit (nevinnoi)

Fan air flow:

no

Circulation pump:

Yes

Automatic fuel supply:

no

Mode "Summer":

no data

Freeze protection:

Yes

Protection against the violation of the circulation of the coolant:

no data

Diet :

220

Noise level, dB:

no data

Size in mm (WxHxD):

400х740х360

Weight, kg:

38

Additionally:

Built-in led display; integrated frost protection; anti-lock braking system pumps; flame supervision with ionization electrode
