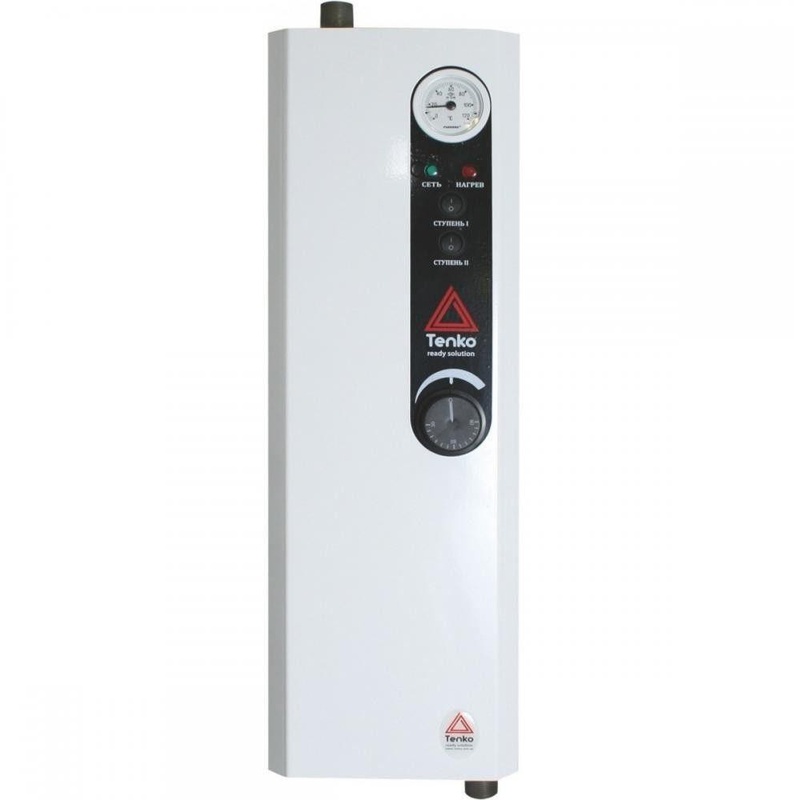

Boiler electric Tenko Эконом 4,5 380

Specs Tenko Эконом 4,5 380

Type

Electric boiler

The number of circuits (designation)

single-circuit (only heating)

Installation method

hinged

The diameter of the chimney (chimney/duct), mm

no

Kind of traction

no

Type of combustion chamber

no

The volume of the combustion chamber, l

no

Power, kW Of 4.5 (3x1,5 kW)

Efficiency, %

99

Maximum fuel consumption

no

Fuel

no

The combustion duration, hour

no

The coolant

water

The need for a mains connection

Yes

Heating

The material of the main heat exchanger

no

Min./Max. the pressure in the heating circuit, bar

up to 3

Adjustable temperature range in the heating circuit, grad.C

30-90

Heating area, sq. m

up to 50

Expansion tank

no

Hot water

The boiler, l

no

The material of the secondary heat exchanger

no

Min./Max. water supply pressure, bar

no

System performance domestic hot water, l/min

no

Adjustable temperature range in the tank, deg.C

no

Equipment and functionality

Type ignition

no

Management

mechanical

Fan air supply

no

Circulation pump

no

Automatic fuel supply

no

The cooking surface

no

The "Summer"

no

Freeze protection

no

Protection against the violation of the circulation of the coolant

no

Food In

380

Noise level, dB

no data

Size in mm (WxHxD)

190х640х120

Weight

9

Additionally

Economy series. Two-stage protection system, capillary thermostat, thermometer, light indication of the operating mode, output for connection of the circulation pump, the ability to connect a room thermostat, suitable for water Underfloor heating
