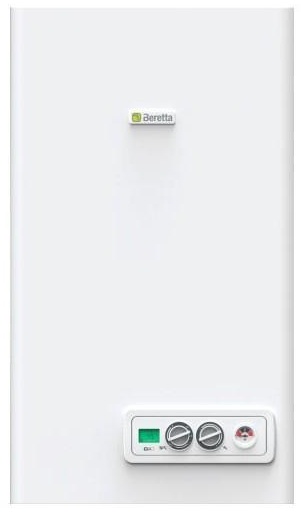

Gas boiler standard Beretta CIAO 24 C.A.I.

Specs Beretta CIAO 24 C.A.I.

Type

Boiler gas standard

The number of circuits (designation) circuits (heating+hot water)

Installation method

hinged

The diameter of the chimney (chimney/duct), mm

130

Kind of traction

natural

Type of combustion chamber

open (atmo)

Power, kW

8,9-23,8

Efficiency, %

89,6

Maximum fuel consumption

2,82 m3/h

Fuel

natural gas

The combustion duration, hour

no

The coolant

water

The need for a mains connection

Yes

Heating

The material of the main heat exchanger

copper

Min./Max. the pressure in the heating circuit, bar

0,25/3

Adjustable temperature range in the heating circuit, grad.C

40-80

Heating area, sq. m

up to 240

Expansion tank

Yes (8L)

Hot water

The boiler, l

no data

The material of the secondary heat exchanger

copper

Min./Max. water supply pressure, bar

0,15/6

System performance domestic hot water, l/min

11,4 (at t=30 °C)

Adjustable temperature range in the tank, deg.C

37 to 60

Equipment and functionality

Type ignition

automatic ignition

Management

electronic control unit

Fan air supply

no

Circulation pump

Yes

Automatic fuel supply

no

The "Summer"

Yes

Freeze protection

Yes

Protection against the violation of the circulation of the coolant

Yes (the system protect the pump from blocking)

Food In

230

Noise level, dB

no data

Size in mm (WxHxD)

400х740х340

Weight

29

Additionally

LCD display; there are two openings for air intake in the separate smoke extraction and the air intake; a residual head of the circulation pump increased by nearly 40% (now 2.5 m water column at the rate of 1000 l/m); built-in function weather-compensated control (when you install the external temperature sensor); stepless power adjustment (modulation burner), automatic ignition and ionization flame control; the priority of hot water; built-in function for automatic adjustment of the coolant temperature (when connecting a room thermostat); functions protection against freezing and blocking the pump; possibility of connection of the remote control; the self-diagnostic system; the ability to work on LPG
