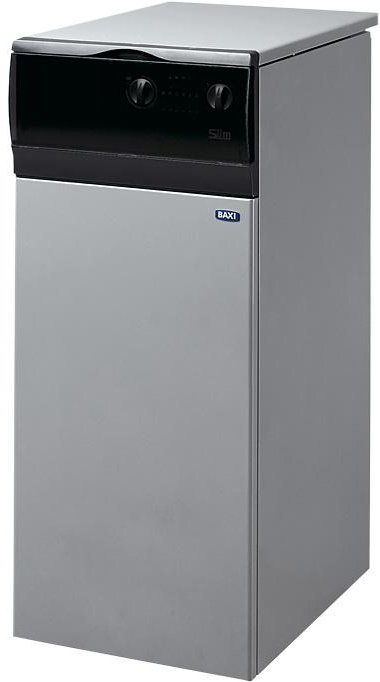

Котел газовый стандартный BAXI SLIM 1.300 iN

Specs BAXI SLIM 1.300 iN

Type

Boiler gas standard

The number of circuits (designation)

single-circuit (only heating)

Installation method

outdoor

The diameter of the chimney (chimney/duct), mm

140

Kind of traction

natural

Type of combustion chamber

open (atmo)

The volume of the combustion chamber, l

no

Power, kW

29,7

Efficiency, %

90

Maximum fuel consumption

Of 3.49 m3/h

Fuel

natural gas

The coolant

water

The need for a mains connection

Yes

Heating

The material of the main heat exchanger

cast iron

Min./Max. the pressure in the heating circuit, bar

no data

Adjustable temperature range in the heating circuit, grad.C

30-85°C and 30-45°C ("warm floors")

Heating area, sq. m

up to 300

Expansion tank

no

Hot water

The boiler, l

no

The material of the secondary heat exchanger

no data

Min./Max. water supply pressure, bar

no

System performance domestic hot water, l/min

no

Adjustable temperature range in the tank, deg.C

no

Equipment and functionality

Type ignition

automatic ignition

Management

electronic control unit (nevinnoi)

Fan air supply

no

Circulation pump

no

Automatic fuel supply

no

The "Summer"

Yes

Freeze protection

Yes

Protection against the violation of the circulation of the coolant

Yes (automatically turns on every 24 hours)

Food In

220

Noise level, dB

no data

Size in mm (WxHxD)

350x850x680

Weight

126

Additionally

Electronic self-diagnostic system; Ionization monitoring the presence of flame; System protection from pump blocking (automatically every 24 h); Protective thermostat against overheating water in the heat exchanger; a Sensor for traction control for safe removal of combustion products; pressure differential switch in the heating system is triggered with a lack of water pressure; System of protection against freezing. Comes with no pump, expansion vessel and pressure gauge
