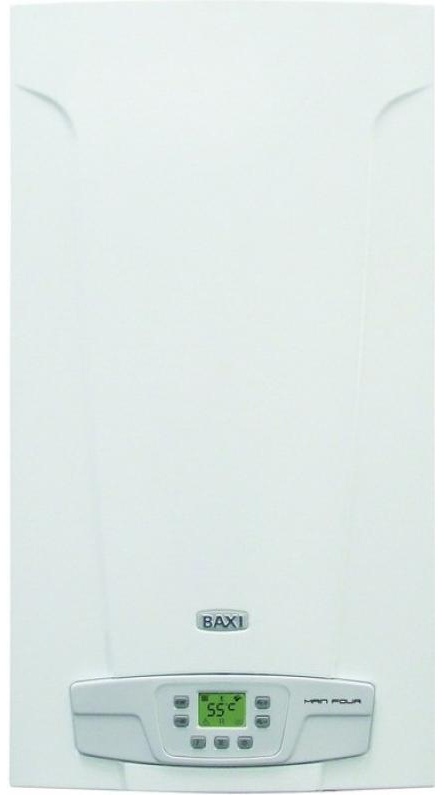

Heating boiler Baxi Main 5 18 Fi

Product code: 28730
Not available
  • gas boiler for convection to singlephase / two-circuit
  • power 18 kW / efficiency 92.8 %
  • closed combustion chamber
  • wall
  • circulation pump
  • expansion tank
All specs
Warranty:
  • 12 months
  • 14 days for exchange / refund
Delivery:

Specify the prices for delivery and terms at the order, the prices can change.
Payment:
  • Безнал без НДС
  • Безнал с НДС

Specs Baxi Main 5 18 Fi

Type
Boiler gas condensing

The number of circuits (designation) circuits (heating+hot water)

Installation method
hinged
The diameter of the chimney (chimney/duct), mm
60/100 (co-axial), 80 (parallel)
Kind of traction
forced
Type of combustion chamber
closed (turbo)
The volume of the combustion chamber, l
no
Power, kW
18
Efficiency, %
92,9
Maximum fuel consumption
Of 2.05 cu. m/hour (natural gas)
Fuel
natural gas/liquefied gas
The coolant
water
The need for a mains connection
Yes

Heating

The material of the main heat exchanger
no data
Min./Max. the pressure in the heating circuit, bar
0,8/3
Adjustable temperature range in the heating circuit, grad.C
35-80
Heating area, sq. m
up to 180
Expansion tank
Yes (6 l)

Hot water

The boiler, l
no
The material of the secondary heat exchanger
no data
Min./Max. water supply pressure, bar
0,15/8

System performance domestic hot water, l/min Value : 10.3 (at t=25 °C)

Adjustable temperature range in the tank, deg.C
35-55

Equipment and functionality

Type ignition
automatic ignition
Management
electronic control unit (nevinnoi)
Fan air supply
no
Circulation pump
Yes
Automatic fuel supply
no
The "Summer"
no data
Freeze protection
Yes
Protection against the violation of the circulation of the coolant
Yes (automatically turns on every 24 hours)
Food In
220
Noise level, dB
no data
Size in mm (WxHxD)
400х700х280
Weight
27
Additionally
Continuous electronic ignition, float switch hot water flow, pressure gauge, automatic bypass, the filter on the cold water inlet, postconcussive pump, the ability to connect a room thermostat and a programmable timer, LCD display with push button operation, electronic protection from the formation of scale, the ability of the output signal of the lock on the remote controller, ionization monitoring the presence of flame, the system protection from pump blocking, protective thermostat against overheating water in the heat exchanger, the pressure differential switch in the heating system, the system of protection against freezing.
