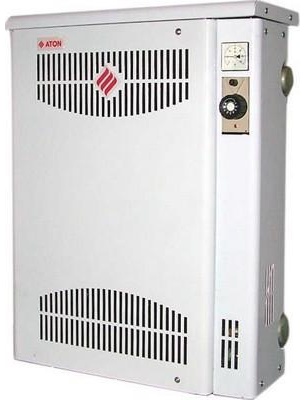

Gas boiler standard ATON Compact 16Е

Specs ATON Compact 16Е

Type

Boiler gas standard

The number of circuits (designation)

single-circuit (only heating)

Installation method

outdoor

The diameter of the chimney (chimney/duct), mm

no data

Kind of traction

forced air supplied from the outside of the room

Type of combustion chamber

closed (turbo)

Power, kW

16

Efficiency, %

90

Maximum fuel consumption

1.8 m3/h.

Fuel

natural gas

The coolant

water

The need for a mains connection

no

Heating

The material of the main heat exchanger

steel

Min./Max. the pressure in the heating circuit, bar

no data

Adjustable temperature range in the heating circuit, grad.C

no data

Heating area, sq. m

up to 160

Expansion tank

no

Hot water

The boiler, l

no

The material of the secondary heat exchanger

no

Min./Max. water supply pressure, bar

no

System performance domestic hot water, l/min

no

Adjustable temperature range in the tank, deg.C

no

Equipment and functionality

Type ignition the piezoelectric

Management

mechanical

Fan air supply

no

Circulation pump

no

Automatic fuel supply

no

The "Summer"

no

Freeze protection

no

Protection against the violation of the circulation of the coolant

no

Food In

no

Noise level, dB

no data

Size in mm (WxHxD)

700х800х320

Weight

80

Additionally

Do not require the connection of a flue gas parapet
