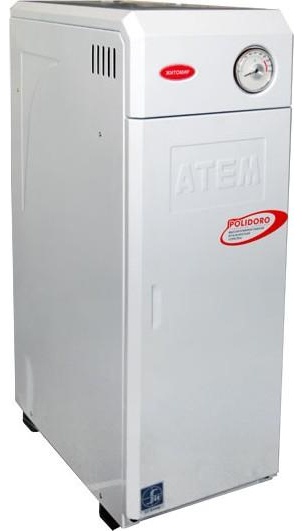

Gas boiler standard АТЕМ Житомир-3 КС-ГВ-020 СН

Product code: 39765

Not available

Add review

Тип: Котел газовый стандартный
Количество контуров (назначение): двухконтурный (отопление+горячее водоснабжение)
Вид тяги: естественная
Мощность: 22,5 кВт
КПД: 90 %
Топливо: природный газ
Теплоноситель: вода(pH7+03)

All specs

Warranty:

12 months (from official service center)
14 days for exchange / refund

Delivery:

Pickup: 3-A Antonovycha Str...
In Kiev: 300 uah
In Ukraine: by Nova Poshta

Specify the prices for delivery and terms at the order, the prices can change.

Payment:

Безнал без НДС
Безнал с НДС

Specs АТЕМ Житомир-3 КС-ГВ-020 СН

Type: Boiler gas standard

The number of circuits (designation) circuits (heating+hot water)

Installation method: outdoor
The diameter of the chimney (chimney/duct), mm: 128
Kind of traction: natural
Type of combustion chamber: open (atmo)
The volume of the combustion chamber, l: no
Power, kW: 22,5
Efficiency, %: 90
Maximum fuel consumption: 2,6 m3/h
Fuel: natural gas
The combustion duration, hour: no
The coolant: water(pH7+03)
The need for a mains connection: Yes

Heating

The material of the main heat exchanger: steel
Min./Max. the pressure in the heating circuit, bar: no data/1
Adjustable temperature range in the heating circuit, grad.C: 55-90
Heating area, sq. m: 220
Expansion tank: no data

Hot water

The boiler, l: no data
The material of the secondary heat exchanger: copper
Min./Max. water supply pressure, bar: no data/6
System performance domestic hot water, l/min: 9
Adjustable temperature range in the tank, deg.C: no data

Equipment and functionality

Type ignition: automatic ignition
Management: mechanical
Fan air supply: no
Circulation pump: no data
Automatic fuel supply: no
The "Summer": no
Freeze protection: no data
Protection against the violation of the circulation of the coolant: no
Food In: 220
Noise level, dB: no data
Size in mm (WxHxD): 390х860х590
Weight: 84

Additionally efficient and environmentally friendly insulation based on basalt fiber; boilers tested secure reliable gas valves, temperature controllers, sensors, and thrust the flame; there is only the automatic safety SIT (Italy), gas burner POLIDORO (Italy)
